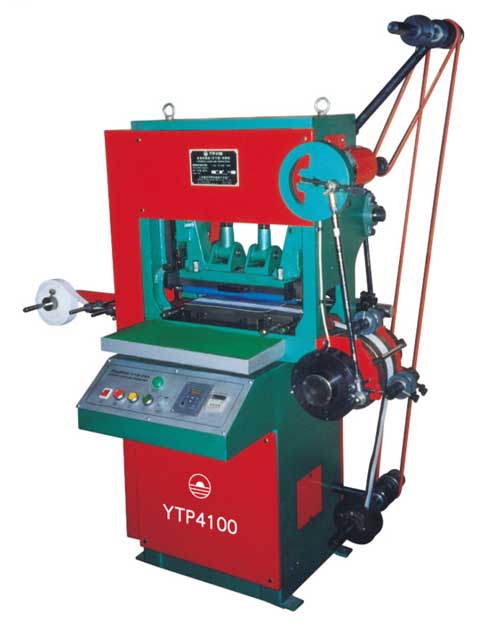

YTP4100 Automatic Label Printing Machine
Specifications
YTP4100 Automatic

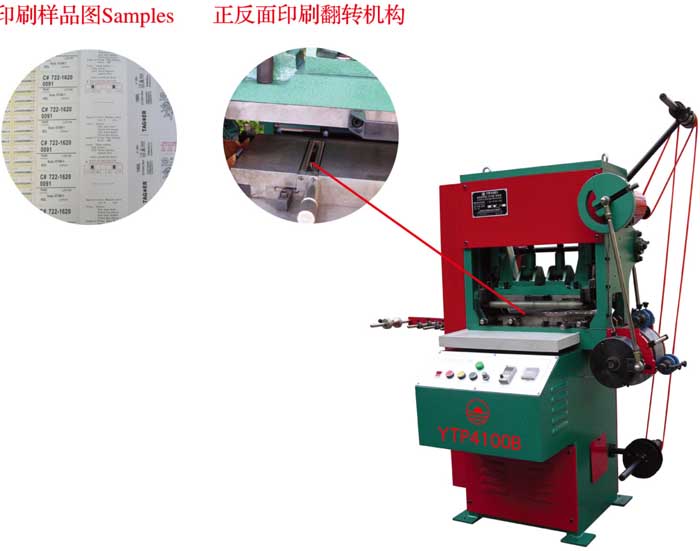

Label Printing Machine.YTP 4100 is designed for fabric & simple adhesive printing in roll form. For matorials like nylon taffota and polyester satin & adhesive paper etcs.Automaically in line with printing & die cutting in one process,(only 3 colors with die cut attached).This letter press system is suitable for photopolymer plate,zinc,and photo-engravers plate printing.It is the desirable machine for ribbon,simple adhesive, bar-code & letter pringting etc. YTP 4100B is specially for double sides printing in one process.Speed must less than 2500pcs/hour to allow drying for printed area during reverse process
| Model |
YTP 4100 |
YTP 4100B |
| MAX.Printing Width |
100mm |
| MAX.Printing Length |
180mm （ 1 - 2 colors）
90mm （ 3 - 4 colors） |
| Printing speed |
50-5000imp/h |
| Front&back Printing |
Only front |
Front&back Printing |
| power/voltage |
1.5KW/220V |
2.5KW/220V |
Size
L*W*H |
1450*850*1450mm |
| Weight |
600KG |
620KG |
Tag:Label Printing Machine Press
